High Quality Laminating And Slitting Machine – YWGF1100B Model 130m/Min Plastic Film and Paper Dry Laminating Machine – JINYI

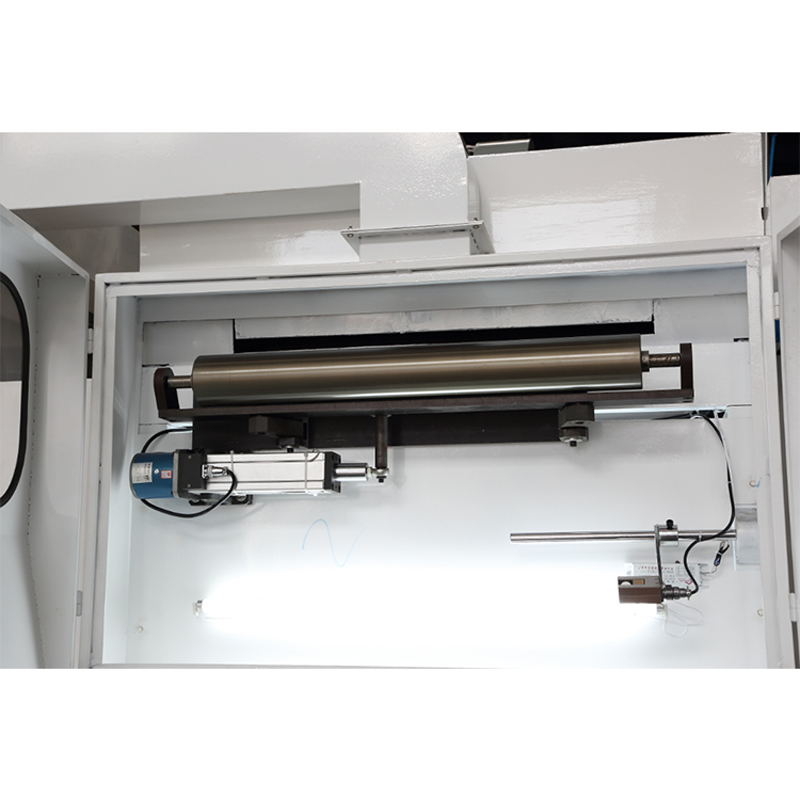

Features

1. Unwind air shaft is controlled by powder brake
2. Rewind air shaft is controlled by torque motor
3. Each unwind has two EPC device to prevent the material from moving left or right.
4. Each unwind has auto tension control
5. Pneumatic oven open and close, length 9 meters.
6. Constant hot air drying and recycled system, air circulation system, waste air exhausting tunnel
7. EPC at the oven exit ensures the material not moving left and right during speeding after heating.
8. Gluing with anilox roller which is shaftless installation
9. Pneumatic pressing roller, pneumatic heavy type doctor blade
10. Lamination part is controlled by inverter motor,lamination roller is heated by heat-conducted oil
11. Floating roller can micro adjust the tension during machine running.

Technical parameter

Main parameter

1).Laminating layer：2 layers
2).Suitable material

BOPP: 18-100μm
CPP: 20-100μm
PET: 12-100μm
PE: 12-150μm
Metalized film: 12-100μm
Paper: 120GSM
Alu foil: need add alu foil shaft

3).Laminating width: 1100mm (1100 model)
4).Material diameter: 600mm
5).Laminating speed: 5-130m/min
6).Max oven temperature: 80℃
7).Max heat drum:70-90℃.
8).Max laminating pressure: 10MPA
9).Tension draw ratio: <<1/1000

First Unwinding（auto cylinder loading )

Structure

1). EPC.
2).Magnetic powder manual tension control.
3).The roll horizontal adjustment is manual
4).Air shaft

Specification

1).Max roll dia: Φ600mm
2).Roll horizontal correcting: ±60mm
3).Tension set: max 50N/m
4).Tension controlling precision ±0.1kg
5).Max unwinding width: (1100mm)
6).Roll horizontal adjustment ±20mm

Gluing part: Doctor blade gluing

Structure

1).Anilox roller is shaftless type
2).The pressing device of gluing pressing roller is swing arm type, work together with guiding roller.
3).Pneumatic heave doctor blade, adjusted in 3 direction, controlled by dual cylinder, transmitted by independent synchronous motor.

Specification

1).Gluing width: (1100mm)
2).Pressing roller: Φ120m, PU rubber , A65°∽70°
3).Max pressure of pressing roller: 235kg
4).Doctor blade movement: ±5mm
5).Max dipping depth: 40mm
6).Doctor blade pressure: 10-100kg

Drying Part

Structure

1)Electric heating.
2)Pneumatic oven open and close.
3)3 pace intelligent temperature control, 3 pace independent constant hot air drying system, air circulation system.
4)Material protecting roller and hot drum run synchronously and equipped with pneumatic oven.

Specification

1)Max temperature:80℃
2)Material length in the oven: 9000mm
3)Blower mouth: 20 pieces
4)Max temperature controlling precision: ±5℃
5）Max intake air: 2800m³/h
6) Blower power: Intake 3KW, outtake 2.2KW
